Shop drawings play a vital role in the construction, manufacturing, and engineering industries. They offer a detailed visual representation of components, systems, or structures, ensuring accurate fabrication, assembly, and installation. Whether you’re a beginner or just looking to refresh your process, this step-by-step guide will walk you through how to create basic shop drawings with confidence and accuracy.
What Are Shop Drawings?
Shop drawings are detailed construction or manufacturing drawings created by contractors, fabricators, or manufacturers. These drawings include precise dimensions, materials, installation methods, fabrication details, and other specifications that aren’t typically found in design drawings. Unlike architectural or engineering plans, shop drawings focus more on how something will be made or assembled.
Why Are Shop Drawings Important?
- Ensure Accuracy: They help prevent errors during manufacturing or installation.
- Bridge the Gap: Shop drawings translate design intent into real-world execution.
- Coordinate Between Teams: They aid in coordination among architects, engineers, and contractors.
- Compliance: They ensure that the project meets code and client requirements.

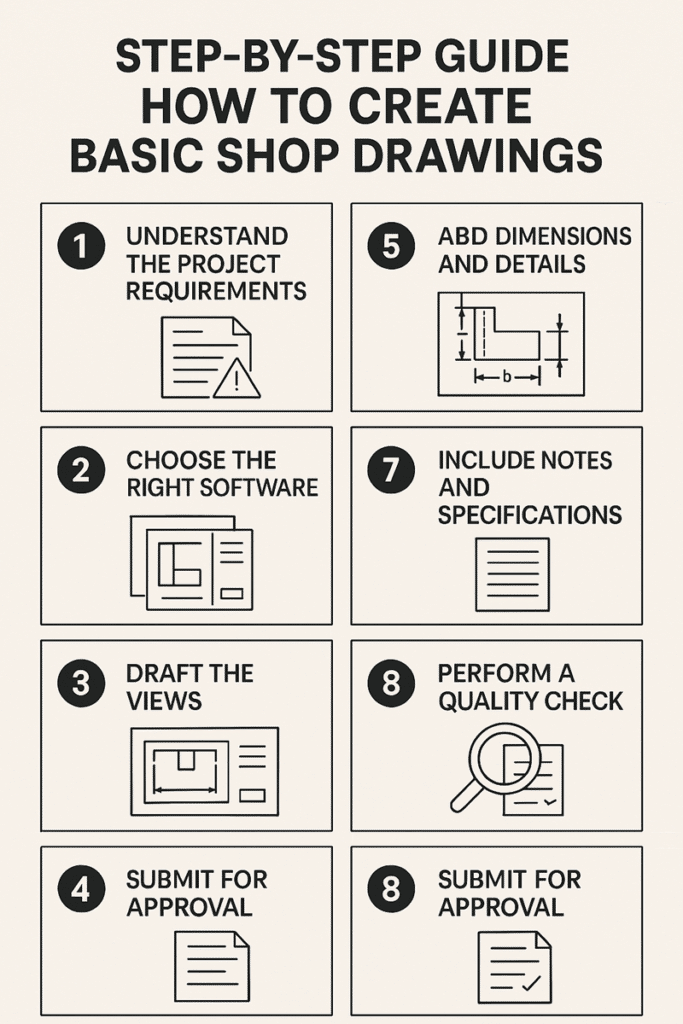

Step-by-Step Guide to Creating Basic Shop Drawings
Step 1: Understand the Project Requirements
Before creating shop drawings, review the architectural and engineering design drawings carefully. Identify what needs to be detailed and gather any required standards, client specifications, or manufacturer data.
Key tips:
- Clarify with the design team if any information is missing.
- Understand material types, tolerances, and finishes.
Step 2: Choose the Right Software
Use a CAD (Computer-Aided Design) software that supports detailed drawing creation. Popular options include AutoCAD, Revit, SolidWorks, or Inventor.
For beginners, AutoCAD is often a good starting point for 2D shop drawings, while Revit or SolidWorks may be better suited for 3D or complex mechanical parts.
Step 3: Start With a Template
Most companies use standardized drawing templates that include:
- Title block (project info, company logo, date, etc.)
- Drawing number and revision history
- Scale and legend
- Notes and general specifications
Using a template ensures consistency and reduces time spent on formatting.
Step 4: Draft the Views
Start drawing the component from multiple angles:
- Plan view (top-down)
- Front and side elevations
- Sectional views (if needed)
Make sure each view includes:
- Accurate dimensions
- Labels and annotations
- Scale indication
Step 5: Add Dimensions and Details
This is where shop drawings shine. Include:
- Overall dimensions (length, width, height)
- Hole sizes and placements
- Weld symbols
- Material callouts
- Surface finishes
- Assembly or installation instructions
Every measurement should be precise, avoiding ambiguity.
Step 6: Include Notes and Specifications
Add any notes that clarify installation procedures, assembly steps, or tolerances. If you’re working with electrical or plumbing components, include code compliance and performance details.
Examples:
- “All dimensions in mm unless otherwise specified.”
- “Welds to be continuous unless noted.”
Step 7: Perform a Quality Check
Before submitting, double-check:
- Are all necessary views included?
- Are dimensions and labels clear and complete?
- Are notes, materials, and symbols correct?
- Does the drawing comply with project standards?
Ask another team member to review the drawing for quality assurance.
Step 8: Submit for Approval
Send the completed shop drawings to the engineer, architect, or project manager for review. Be prepared to make revisions based on their feedback.
Best Practices for Shop Drawings
- Be consistent with scales and units
- Use standard drawing conventions and symbols
- Label everything clearly
- Avoid over-cluttering the drawing
- Document revisions clearly
Following these practices ensures your shop drawings are not just accurate but also easy to understand for anyone using them.
Conclusion
Creating accurate and professional shop drawings is essential for the success of any engineering or construction project. By following this step-by-step guide, you can ensure that your drawings are clear, complete, and meet the necessary standards. As your experience grows, so will your efficiency in producing high-quality shop drawings that are both functional and compliant.
Who prepares shop drawings?
Shop drawings are typically prepared by contractors, fabricators, or manufacturers who need detailed production specifications. We at Draftings Australia often work with builders, steel fabricators, and construction teams to create precise shop drawings that comply with Australian building standards and codes. Specialised CAD drafters like our team can ensure your shop drawings meet all relevant Australian regulations and are ready for immediate manufacturing or construction use.
What’s the difference between shop drawings and construction drawings?
Shop drawings are detailed fabrication plans we create after construction drawings are approved, showing exactly how components will be manufactured and assembled on site. While construction drawings communicate the designer’s intent, our shop drawings provide step-by-step specifications for builders and fabricators, including exact dimensions, materials, and installation methods specific to Australian building standards and local conditions. This distinction ensures quality control and helps prevent costly errors during the construction phase.
Do shop drawings require engineer approval?
Yes, shop drawings typically require review and approval from the project’s architect or engineer before fabrication begins. In Australia, this is an important step to ensure compliance with building codes and standards like the National Construction Code. We recommend submitting your shop drawings early in the process to allow time for revisions and feedback. Our team can prepare drawings that meet all relevant Australian standards to streamline the approval process.
What information should be included in shop drawings?
Shop drawings should include clear dimensions and multiple views to show all fabrication details, material specifications relevant to Australian standards, and specific installation instructions. Our team always includes a comprehensive title block with revision history, notes on construction methods, and references to relevant Australian Standards or building codes. This ensures contractors and fabricators have everything needed to complete the work accurately and safely.
Can shop drawings be created in 3D?
Yes. Many industries now use 3D models to generate detailed u003cstrongu003eshop drawingsu003c/strongu003e, especially in mechanical and structural applications.
Why are shop drawings rejected sometimes?
Shop drawings are sometimes rejected due to missing or incorrect dimensions, lack of clarity, or inconsistencies with the original design drawings. We’ve found that non-compliance with Australian Standards, such as AS 1100 for technical drawing, is another common issue that causes delays. Our team recommends always double-checking your work against the design documentation and relevant standards before submission. Taking the time to review specifications thoroughly helps us process your drawings faster and keeps your project on schedule.
